ESPASIO

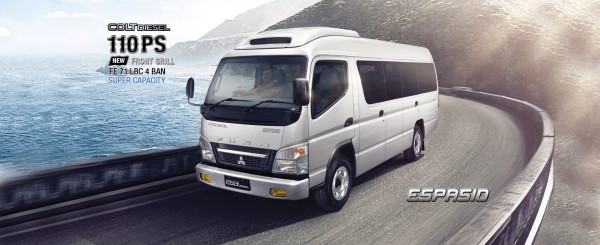

Colt Diesel Bus FE 71 LBC 110PS | 4 Ban | Super Capacity

READY BUS

Spesifikasi Colt Diesel Bus FE 71 LBC 110PS | 4 Ban | Super Capacity | ESPASIO

[expand title=”DIMENSI“]

Jarak Sumbu Roda	mm	3.350
Panjang Keseluruhan	mm	5.930
Lebar Keseluruhan	mm	1.750
Tinggi keseluruhan	mm	2.080
Tinggi Minimal dari Tanah	mm	200
Jarak roda depan kiri-kanan	mm	1.435
Jarak roda belakang kiri-kanan	mm	1.420

[/expand]

[expand title=”BERAT“]

Berat Chassis	kg	1.900
Max G.V.W	kg	5.200

[/expand]

[expand title=”KEMAMPUAN“]

Kecepatan maksimum	km/jam	116
Daya tanjak dengan max G.V.W	tan	35.5
Radius putar minimum	m	7.0

[/expand]

[expand title=”RODA“]

Roda		7.50-16-10PR
Velg		15×5.50F, 6 studs

[/expand]

[expand title=”MESIN“]

Model	–	4D34-2AT5
Tipe	–	4 langkah, direct injection, mesin diesel pendingin air dengan turbo intercooler
Diameter X langkah	mm	104×115
Jumlah silinder	cc	4 sejajar
Isi S silinder	–	3.908
Daya maksimum	PS/rpm	110/2.900
Torsi maksimum	Kg.m/rpm	28/1.600

[/expand]

[expand title=”TRANSMISI“]

Model	–	M025S5
Tipe	–	5 gigi maju dan 1 gigi mundur, 1-5 synchromesh, gigi mundur constantmesh
Perbandingan gigi	–	5.181-2.865-1.593-1.000-0.739 Mundur 5.181
Kopeling		Pelat kering tunggal, C3W28D

[/expand]

[expand title=”AS“]

Depan	–	Reverse Elliot, type “I” Beam
Belakang	–	Full Floating Type
Perbandingan gigi akhir	–	4.875

[/expand]

[expand title=”STIR“]

Tipe		Ball & Nut type with adjustable steering column (Tilt & telescopic)

[/expand]

[expand title=”SUSPENSI“]

Depan		Semi elliptic, laminated leaf springs dengan shock absorber
Belakang		Semi elliptic, laminated leaf springs dengan shock absorber

[/expand]

[expand title=”REM“]

Rem kaki		Sistem Hidraulis dengan Vacuum Servo Assistance, Dual Circuit
Rem Tangan		Tipe internal expanding di bagian belakang transmisi
Rem Pembantu		Sistem pengereman gas buang

[/expand]

[expand title=”SISTEM KELISTRIKAN“]

Accu		24 V, 40AH (N50)

[/expand]

[expand title=”KAPASITAS BAHAN BAKAR“]

Tangki

liter

100

[/expand]
